MT-512E2HP

Description

It features a single relay output, for cooling or heating purposes, combined to a cyclical timer for natural defrost. The natural defrost can be forced or performed through an off refrigeration cycle. It also features a configurable digital filter, which has the aim of simulating an increase of mass in the environment sensor, thus increasing its response time, that is, the  sensor response becomes slower. In addition to those features, the MT-512E 2HP has tamper-proof function that blocks the keypad preventing unauthorized users changing its settings, and a control function shutdown that deactivates the controlling outputs turning the instrument into a digital temperature indicator.

This product is CE, UL and NSF certified. According to UL laboratory tests, this product is also suitable for installations with R290 and R600a gases.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm

Application example: walk-ins, chilled good displays, stoves, and heated floors

MT-514E

Description

Temperature controller for refrigeration (frozen and chilled goods) or heating applications. It has an internal audible alarm (buzzer) and a configurable digital input to detect an open door and/or external alarm/power fault. It performs a natural defrost by stopping the compressor if configured for chilled goods. Output 2 offers the option of functioning as a NC contact of output 1, as a temperature alarm, or to activate a forced defrost (when used for frozen goods). Another available resource is the disconnection of the control functions, allowing for the MT-514E to act only as a temperature indicator. Additionally, through an intelligent function locking system, it prevents unauthorized people from changing the control functions.

This product is UL and NSF certified. According to UL laboratory tests, this product is also suitable for installations with R290 andM R600a gases.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm
Application example: vaccine preservation, displays for chilled/frozen goods, and hot counters.

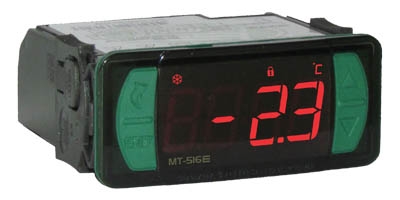

MT-516E

Description

Temperature controller for refrigeration or heating applications. It has an output for cyclic timer that can also be configured as an alarm output or a second refrigeration or heating stage. Another available resource is the disconnection of the control functions allowing for the MT-516E to act only as a temperature indicator. Additionally, through an intelligent function locking system, it prevents unauthorized people from changing the control functions.

This product is UL certified.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm
Application example: milk cooling tanks, refrigerated displays, incubators and heat pumps.

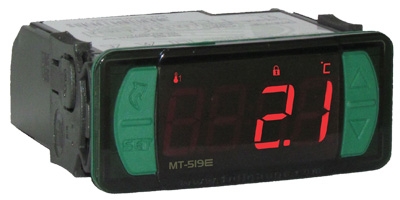

MT-519E


Description

Temperature controller for cooling or heating applications with two independent thermostats, allowing operations in two different environments. In addition, the outputs of the thermostats can be configured as cyclic timers and the alarm output can be linked to any of the thermostats. It also includes an audible alarm (buzzer), digital filter, and configurable digital input.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm
Application example: boilers, heaters, freezers, refrigerated counters, hot/cold counters.

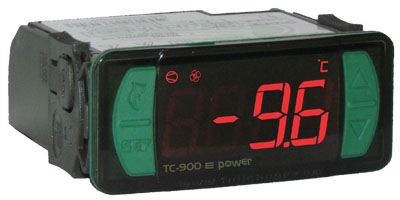

TC-900POWER


Description

For frozen goods, it automates the defrosting process according to the needs of the facility (intelligent defrosting), providing energy savings. It operates with two sensors, one for room temperature and the other, fastened to the evaporator, that controls defrosting completion and fan restarting. The room temperature control has a normal setpoint and an economy setpoint, in addition to the fast freezing functionality and alarm functions indicating that the door is open. It features up to two digital inputs. One of these inputs may be configured as sensor 3* to monitor the condenser temperature and disconnect the control outputs in case of an alarm.

It also features a digital filter, which is intended to simulate an increase of the mass of the room temperature sensor (S1), thus increasing its response time (thermal inertia), and avoiding unnecessary compressor activations. Its 16-Amp relay output can control compressors of up to 1 hp and the defrost output has a current capacity of 10 Amp. To drive inductive loads (motors and pumps) of up to 2 HP, use model TC-900E 2HP.

This product is CE, UL and NSF certified. According to UL laboratory tests, this product is also suitable for installations with R290 and R600a gases.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm
Application example: walk-in and display freezers

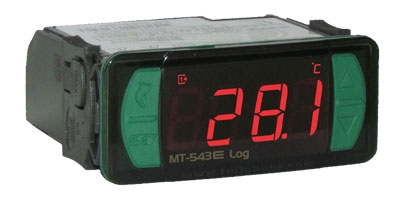

MT-543E Log


Description

It has four configurable outputs: cooling, heating, minimum ventilation, and alarm and timer (cyclic timer). It has an internal audible alarm (buzzer), a configurable digital filter, and accept three types of sensors: NTC thermistor (- 50 to 105°C), PT100, and PT1000 (- 99 to 300°C). This instrument provides for the rotation of up to four devices. MT-543E Log also has a fifth relay that can be used as a power fault alarm and/or alert. In addition, it features a clock and internal memory (datalogger), which allows storage of the temperature value at specified periods of time,

the variation of temperature and the status of the outputs. It also features a built-in rechargeable battery, which allows the data recorded to be kept even after a power fault.

It also allows monitoring of HACCP critical points (Hazard Analysis and Critical Control Point) by means of records in the controller's memory of high temperature alarm, power failure, and digital input.

It has a serial communication for connection to Sitrad.

This product is UL certified.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase.

* sold separately

Dimensions: 71 x 28 x 71 mm
Application example: blood banks, multistage systems of temperature, air conditioners, datacenters, vaccine chambers, and industrial ovens (with PT-100).

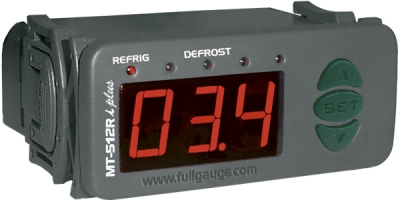

MT-512Ri Plus


Description

Digital instrument for walk-in and display coolers with natural defrost function by compressor shutdown and permanent ventilation. It features a 16Amp powerful relay that commands up to 1HP compressors without the need of a magnetic contactor, associated a timer with a programmable cooling and defrosting times. It also has a programmable Digital Filter which prevents the compressor from constant switches while the door is temporarily open. This filter aims to simulate an increase in the environmental mass through sensor 1 (S1) thus increasing the thermal reaction time (thermal inertia).


This product is CE, UL and NSF certified.

It has a serial communication for connection to Sitrad.

* This product has been discontinued. It was replaced, with advantages, for MT-512E Log.

Dimensions: 71x28x71 mm
Application example: walk-in, cooling chambers and display coolers

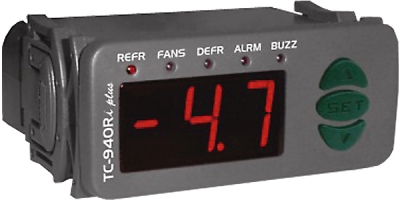

TC-940Ri Plus


Description

One of the most versatile low temperature controller, it offers three operating modes: refrigeration; heating; automatic. The heating mode has been designed for applications where external (environment) temperature is lower than the evaporation temperature. Featuring four relay outputs, two temperature sensors, a digital input which can be programmed for door alarm, force defrost or economic setpoint, built-in buzzer and digital filter. With a powerful 16A Relay,

commands directly up to 1HP compressors. In addition to these features, has On-demand defrost and a shutdown mode to inhibit all outputs including relay switches and alarms. The collection of residual refrigerant fluid before the defrost cycles reduces power consumption and enhances the system performance. The RS-485 serial communication port enables connection to our award-winning Sitrad software.

This product is UL and NSF certified.

Dimensions: 71x28x71 mm

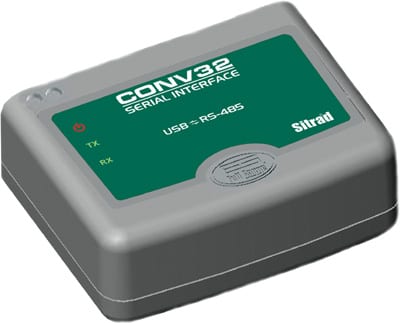

Conv 32


Description

Device used to connect to Sitrad Pro of up to 32 instruments with serial connection. It performs the communication between the controllers and the computer, by means of converting RS–485 signals from the controllers. The CONV32 is connected to the computer or Sitrad InBox by an USB cable.

>> USB Driver

The USB Driver is for use by CONV32 version 1 on Windows 8 or lower operating systems.

 If you have difficulty downloading directly due to your browser blocking, right-click on the link and choose "Save link as...".

Dimensions: 91 x 91 x 37 mm

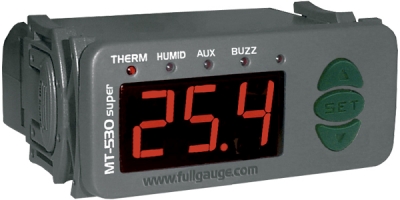

MT-530 super

Description

Three outputs: one for temperature control, another for humidity control, and a third one for auxiliary purposes which may operate as a second stage for temperature control, second stage for humidity control, or as a cyclic timer. Additionally, MT-530 is capable of monitoring output status, against an user-configurable time, to warn if the controlled variable is not reaching the configured value, which may be an indication of improperly dimensioned or faulty equipment. It also features an internal audible alarm (buzzer).

It operates in the range from 10 to 85% RH and from -10 to 70°C.

It has a serial communication for connection to Sitrad.

* This product has been discontinued. It was replaced, with advantages, for MT-530E Super.

Dimensions: 71x28x71 mm
Application example: data centers and general-ambient air conditioning.
