VHTW-V61

Product ID : HTW-V61

Product Attributes :HTW-V61 series Product ID : HTW-V61motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or
air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body.
The room temperature could be controlled in the set-point through turn-on or turn-off of valve.

 >> General

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or

air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body.
The room temperature could be controlled in the set-point through turn-on or turn-off of valve.


>> Specifiation of Actuator

Model                   Rated Power Supply

HTW-V61-8503    AC220V±10%, 50/60Hz

HTW-V61-8203    AC110V±10%, 50/60Hz

HTW-V61-8003  AC24V±10%, 50/60Hz

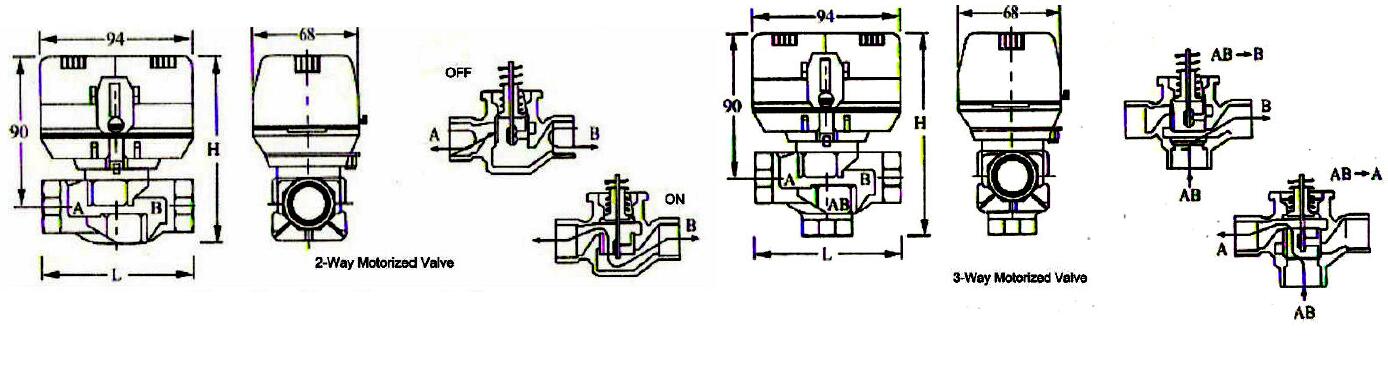

 >> Specification of Valve Body

Model                  Configuration                                  Kvs                        Connection Type           Differential Pressure(MPa)

HTW-V61-215 normally closed two-way         2.0                             G1/2                     0.20

HTW-V61-220  normally closed two-way        3.2                             G3/4                   0.10

HTW-V61-225 normally closed two-way           5.7                            G1                        0.06

HTW-V61-315  mixing three-way                           3.2                            G1/2                     0.20

HTW-V61-320 mixing three-way                           4.6                           G3/4                    0.10

HTW-V61-325  mixing three-way                          4.8                             G1                       0.06

 >> Technical Parameters


• Consumption  5W

•Drive style  Bi-direction reversible motor drive

•Cooperate time with thermostat the valve open within 6s at 60HZ

•N.W.(Kg)-Actuator 0.35

•Medium Cool/hot water

•Liquid temperature  1~95°C

•Pressure(MPa)  1.6

•Environment temperature  0~65°C the max relative humidity, non-condensing

•Storage temperature  -20~65°C the max relative humidity, non-condensing

>> Wiring Diagram
